PASSENGER (TRACTION) LIFT


AVIRA geated traction passenger elevators are ideal for applications that require a combination of rapid speed, high travel, and heavy lifiting capacity such as high rise residential buildings, office towers, hospitals, universities and colleges.

Modern traction elevators are incorporated with (VVVF) drive to improve ride quality and reduce energy consumption

LOW RISE

Salient features

  • Designed for Home, Villa’s, Bungalow’s, Farm House, Apartments, Commercials Complex & Shopping Malls
  • Smooth, Quiet and Comfortable Ride
  • Energy Efficient V3F Drive
  • Proven Safety and Reliability
  • Counter Weight Safety
  • Automatic Rescue Device (A.R.D.)/U.P.S. Battery

Technical Specifications

  • Landings : 5
  • Travel : 20 mtrs
  • Load : 544 kgs
  • Passengers : 8
  • Speed : 0.68 – 1.00 mps

Optional Features

  • Available with Gearless Motor Technology
  • Integrated Technology
  • Encoder Based Geared Motor For Smooth Riding
  • Two Side Entrance comfortable for Single User

MID RISE

Salient features

  • Designed for Apartments Commercials Complex and Shopping Malls
  • Smooth, Luxurious Jerk Free Ride
  • Energy Efficient V3F Drive
  • Proven Safety and Reliability
  • Counter Weight Safety
  • Automatic Rescue Deviceer (A.R.D.) / U.P.S. Battery

Technical Specifications

  • Landings : 10
  • Travel : 40 mtrs
  • Load : 884 kgs
  • Passengers : 13
  • Speed : 0.75 – 1.50 mps

Optional Features

  • Available with Gearless Motor Technology
  • Integrated Technology
  • Encoder Based Geared Motor For Smooth Riding
  • Customized Door Location
  • Car Height: 2300mm

HIGH RISE

Salient features

  • Designed for Business Towers and High-end Commercial Center
  • Flawless, Quiet, Comfortable, Luxurious Jerk-free Ride
  • Energy Efficient V3F Drive
  • Counter Weight Safety
  • Proven Safety and Reliability\Aesthetics of Premium Quality

Technical Specifications

  • Landings : 30
  • Travel : 110 mtrs
  • Load : 2176 kgs
  • Passengers : 32
  • Speed : 1.00 – 2.50 mps

Optional Features

  • Available with Gearless Motor Technology
    Integrated Technology
  • Encoder Based Geared Motor For Smooth Riding
  • Customized Door Location
  • Car Height: 2400mm
  • Door Height: 2200mm

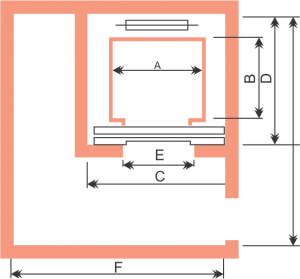

DIMENSIONS-AUTOMATIC CENTER OPENING DOORS

Persons Load
(kgs)		 Car Inside Lift Well Entrance Machine Room PIT
Depth		 Over
Head
A B C D E F G H
5 340 1030 925 1600 1500 700 2000 3300 2500 1600 4800
6 408 1130 1025 1600 1600 700 2000 3300 2500 1600 4800
8 544 1330 1075 1800 1650 800 2800 3300 2500 1600 4800
10 680 1430 1225 1900 1800 800 2900 4000 2500 1600 4800
13 884 1680 1325 2200 1900 900 3900 4000 2500 1600 4800
16 1088 1680 1325 2300 1900 1000 3900 4100 2500 1600 4800
20 1360 1930 1625 2500 2200 1000 3900 4400 2500 1600 4800

DIMENSIONS-MANUAL OPENING DOORS

Persons Load
(kgs)		 Car Inside Lift Well Entrance Machine Room PIT
Depth		 Over
Head
A B C D E F G H
5 340 1050 900 1500 1250 750 2000 3300 2500 1600 4800
6 408 1100 1000 1600 1350 750 2000 3300 2500 1600 4800
8 544 1300 1100 1700 1550 750 2800 3300 2500 1600 4800
10 680 1400 1250 1850 1750 1000 2900 4000 2500 1600 4800
13 884 1950 1250 2400 1750 1000 3900 4000 2500 1600 4800
16 1088 1950 1350 2450 1850 1000 3900 4100 2500 1600 4800
20 1360 2000 2000 2500 2200 1200 3900 4400 2500 1600 4800

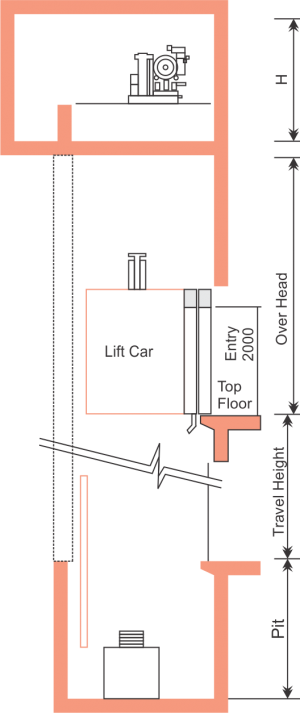

passenger1

Note:

Machine Room Layout can be different to suit architectural requirements.

All Dimensions are in millimeters.

Lift shaft dimensions are minimum finished dimensions.
